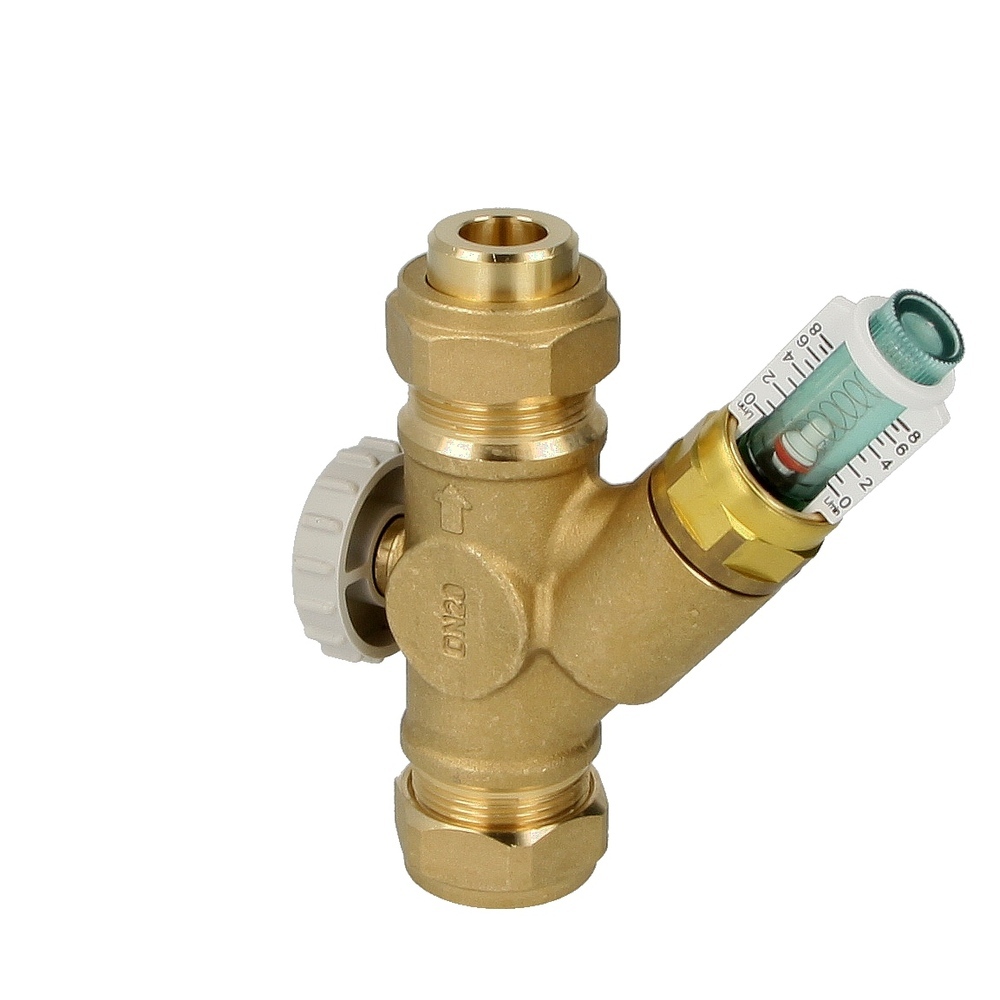

Reguleerventiel WattFlow OL DN20

Balancing valve for the regulation of heating, ventilation and air-conditioning systems as well as balancing of drinking water circulation pipes. The balancing valve with angle seat can be used for rapid and exact balancing of consumer circuits in HVAC systems and circulation pipelines. Balancing valve with integrated flow display which is not installed directly in the medium flow and is therefore protected against soiling.

Technical data:
- flow indication: rotatable indicator scale
- nominal width: DN 20
- maximum operating temperature: 100° C
- minimum operating temperature: -10° C
- operating pressure: 6 bar
- housing: brass
- flow indication made of impact- and temperature-resistant plastic
- spring: stainless steel
- gaskets: EPDM
- flow rate: 1-8 l/min
- 15 mm copper (Cu) KVSR
